20 Ton Rail-Mounted Gantry Crane for Outdoor Lifting Operations
- VOHOBOO
- Hubei, China (Mainland
- 1-20 sets lead time:25days ; 21-50 sets lead tim30days ; ＞50sets:to be negotiated
- 100 Set/Sets per Month gantry crane price
Structure & Customization
Each gantry crane features a durable welded steel frame, optimized for high strength and low deflection under load. Available in rail-mounted or rubber-tired configurations, our cranes are suitable for fixed-path operations or mobile handling tasks. Customization options include adjustable span, height, lifting speed, hoist type, and more. With our engineering support, we can provide tailored solutions to meet your space, load, and operational requirements, ensuring maximum productivity with minimal downtime.
Product Description：

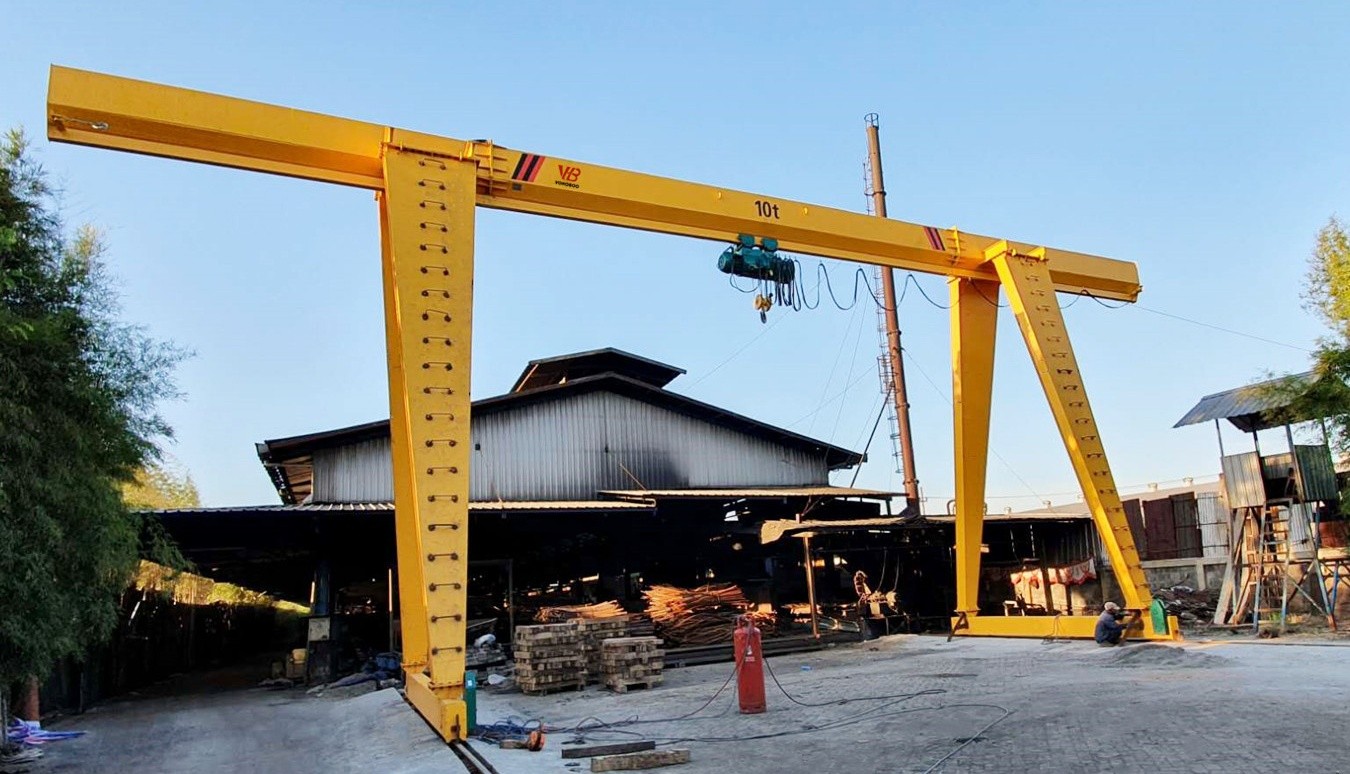

Single girder gantry crane
1.Mainly made up of bridge,trolley,crane traveling mechanism and electric system
2.Applies to the open warehouse or rail along for general handling and lifting work
3.Also can equipped with many lifting device for special work
4.Prohibited for lifting high temperature solution, flammable, explosive, corrosion, overloading dust and other dangerous operations.It is widely used in industrial and mining enterprises warehouses and other places need lifting weights.
Lifting capacity:5-50 ton
Span:7m-25m,
Lifting height:6m-45m.
Light duty:A4
Application:open warehouse or rail along for general handling and lifting work.
It has truss beam and box beam.
2. Product Details：
Single girder gantry crane is a kind of track traveling midlight type crane, used together with CD, MD, HC model electrical hoist, according to the shape, it also divided into MH type and MHLP
type gantry crane.
Single girder gantry crane Features：
√ Simple and compact structure, steady performance.
√ Easy to install and high efficiency.
√ Overload, low voltage protective device.
√ Pendent control and remote control.
√ Easy maintenance.
Single girder gantry crane Specification：
Lifting capacity is 5ton to 32ton;
Span is 12m to 30m;
Lifting height is 6m, 9m, 12m, etc;
Working duty is A5;
Working temperature is -20°C to + 50°C.
Loading capacity | 5 ~ 500t |
Lifting height | 3 ~ 30 m or customized |
Lifting speed | Vary with lifting capacity, or customized. |
Span | 10.5~31.5 m/min |
Lifting mechanism | Wire rope hoist or electric chain hoist |
Working class | A5-A8 |
Working temperature | -20~40 |
Power supply | AC-3Phase-220//230380/400/415/440V-50/60Hz |
Control voltage | DC -36 / 48V |
Motor protection class | IP54 IP55 IP65 |
Control way | Cabin, wireless remote, pendant push button |
Safety device | Buffer,current overload protection,overload device |
Application area | Factory,workshop,warehouse,power station, |
3. Product Application：
Gantry cranes are widely used in various industrial environments where overhead lifting is required but building support structures are not feasible. These cranes are ideal for outdoor yards, construction sites, shipyards, manufacturing workshops, logistics terminals, and steel fabrication plants. They are commonly applied for loading and unloading heavy materials, transporting large components, and assembling prefabricated structures.
Available in single girder, double girder, rail-mounted, and rubber-tyred configurations, gantry cranes offer flexible solutions for both stationary and mobile operations. Their ability to span wide areas without permanent foundation makes them particularly suitable for temporary work zones and open-air operations, delivering efficient, safe, and cost-effective lifting performance.
4. Packing & Shipping
