Space Saving Wall Mounted Cantilever Jib Crane with Customized Bracketry for Confined Factory Areas

Brand VOHOBOO
Product origin Hubei, China (Mainland
Delivery time 2~4 weeks after your payment
Supply capacity 2000 Set/Sets per Month gantry crane 1 ton

Heavy duty lifting solution available in pillar mounted wall mounted and slewing bearing types tailored for industrial workshops.
Professional engineering team provides fully customized arm length lifting height and load capacity according to specific factory layout drawings.
Versatile foundation options including large base plate chemical bolt and embedded part methods ensuring stable mounting on any floor condition.
Ergonomic design maximizes floor space and operational efficiency for production line assembly and heavy material handling tasks.
Comprehensive technical data package and installation guidance available for global wholesalers and engineering contractors.

Email

Electric 1t Jib Crane

Structural Design and Technical Specifications

The design of a jib crane is centered around stability, precision, and versatility. The main components include the mast or column, jib arm (boom), slewing mechanism, and lifting unit. The mast is anchored to a foundation or wall to provide structural stability, while the jib arm extends horizontally to support the hoist and trolley. For free-standing types, a reinforced base plate and anchor bolts ensure the crane can safely handle heavy loads without structural deformation.

The slewing mechanism, which allows the jib arm to rotate, can be manually operated for light-duty applications or powered by an electric motor for heavy loads and high-frequency usage. Rotation ranges can be configured from 180° to full 360°, depending on installation space and operational requirements. The hoist unit—whether an electric chain hoist or wire rope hoist—is mounted on a trolley that moves along the jib arm, providing precise horizontal load positioning.

Technical customization options include lifting capacities from 0.125 tons to 20 tons, outreach lengths tailored to workspace dimensions, lifting heights determined by building clearance, and hoist speed adjustments for delicate or heavy-duty handling. Safety features such as overload protection devices, emergency stop functions, limit switches, and anti-sway controls can be integrated to ensure compliance with international safety standards.

The steel structure is engineered to resist bending and torsional forces, with a robust finish to withstand harsh industrial environments. Bearings, gears, and motors are designed for long service life with minimal maintenance, making jib cranes a cost-effective and reliable solution for various material handling tasks.

Technical parameter:

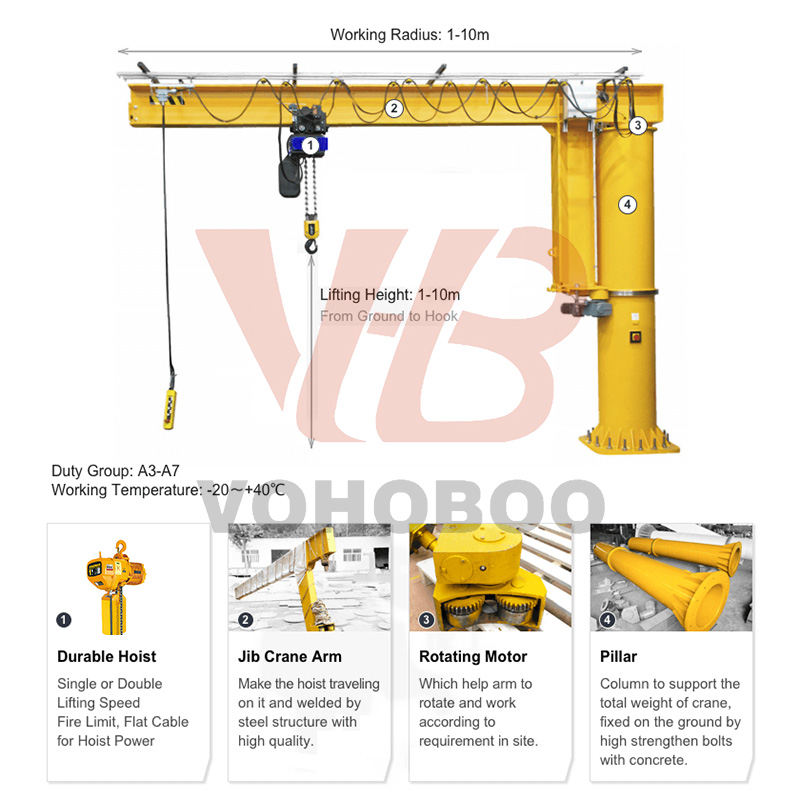

Floor-Mounted Jib Crane
