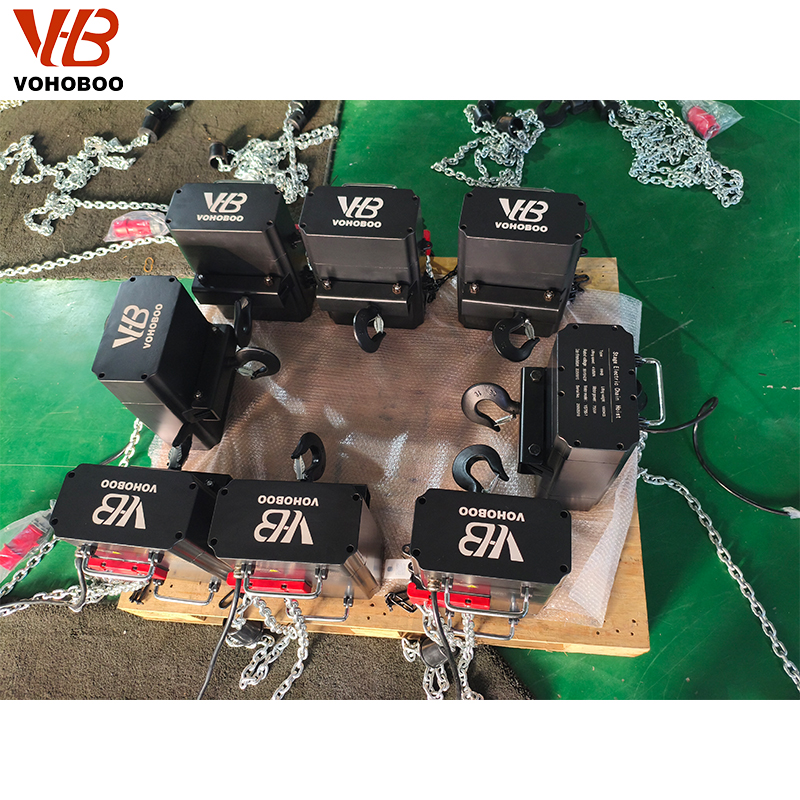

2 years Warranty Cheap Price 0.125T to 6.3T Electric Chain Hoist With Fixed Type Trolley Type Low-headroom Type
- VOHOBOO
- China
1. Extensive chain hoist range for lifting capacities from 125 kg to 6,300 kg
2. Suspension directly from the chain guide of solid cast iron
3. Easy inspection and maintenance of the chain drive thanks to overmounted drive shaft
4. Optionally with frequency inverters for lifting and travel
5. Extremely short and compact construction ensures that space
6. 2 years warranty
SH Chain Hoist description：
SH Chain Hoist Features：
●lift capacity from 0.125T to 6.3T.
●Various configurations are available for selection.
●Adopting a new type of suspension structure design, the lifting sprocket is convenient for inspection and maintenance
●The whole adopts high-strength aluminum alloy design, light weight and small size.
●With modular design, production, installation and maintenance are simple
and fast.
Parameters:
Lift capacity (KG) | Work duty | Lift speed (m/min) | Model |
125 | 3m/M5 | 16/4 | SH0501-16/4 1/1 |
3m/M6 | 8/2 | SH0501-8/2 1/1 | |
250 | 2m/M5 | 12/3 | SH0501-12/3 1/1 |
1Am/M4 | 8/2 | SH0502-8/2 1/1 | |
500 | 1Am/M4 | 4/1 | SH0502-8/2 2/1 |
1Am/M4 | 8/2 | SH0501-8/2 1/1 | |
1Am/M4 | 12/3 | SH1005-12/3 1/1 | |
1000 | 1Am/M4 | 4/1 | SH1005-8/2 2/1 |
1Am/M4 | 6/1.5 | SH1005-12/3 2/1 | |
2m/M5 | 8/2 | SH2010-8/2 1/1 | |
1Am/M4 | 12/3 | SH2010-12/3 1/1 | |
1250 | 3m/M6 | 6/1.5 | SH2006-12/3 2/1 |
3m/M6 | 16/4 | SH3212-16/4 1/1 | |
1600 | 1Bm/M3 | 8/2 | SH3016-8/2 1/1 |
2m/M5 | 8/2 | SH3216-8/2 1/1 | |
1Am/M4 | 12/3 | SH3216-12/3 1/1 | |
2000 | 2m/M5 | 4/1 | SH2010-8/2 2/1 |
1Am/M4 | 6/1.5 | SH2010-12/3 2/1 | |
2500 | 1Am/M4 | 6/1.5 | SH5025-6/1.5 1/1 |
1Am/M4 | 8/2 | SH5025-8/2 1/1 | |
3200 | 1Bm/M3 | 4/1 | SH3016-8/2 2/1 |
2m/M5 | 4/1 | SH3216-8/2 2/1 | |
1Am/M4 | 6/1.5 | SH3216-12/3 2/1 | |
1Bm/M3 | 6/1.5 | SH6032-6/1.5 1/1 | |
5000 | 1Am/M4 | 3.2/0.75 | SH5025-6/1.5 2/1 |
1Am/M4 | 4/1 | SH5025-8/2 2/1 | |
6300 | 1Bm/M3 | 3.2/0.75 | SH6032-6/1.5 2/1 |
SH hoist standard with:
3m lift chain, can be customized longer.
1M power supply cable. Lifting motor with IP55 Protection level, travel motor with IP54 Protection level.
Upper and lower electronic limit switches.
Standard with mechanical load limiter.
High-strength chain, surface carburizing and galvanizing treatment.
The lift hook can be rotated 360 degrees and is equipped with a safety lock.
Wooden box packing.
